The Blister

The Blister Making

Step 1 - Get the template (two same patterns)
CNC machine cutting by tutor & Cut the pattern inside  with jigsaw power tool





















Step 2 - Sanding the inside part smoothly with the router power tool & filers




















Step 3 - Insert a piece of aluminum between two pieces template  & Screw at four corners



















Step 4 - Hammer the aluminium part as blow a bloom
Hammer the bottom part first and start around the edge.









































Step 5 - Keep hammering & make it more depth
 Then hammer to the narrow part.






Step 6 - Unscrew the template and take the aluminum piece out



Step 7 - Cut the outer into a shape
Using scribe to measure and mark then cut with the tin snips






















Step 8 - Smooth the edges with filers and sand paper

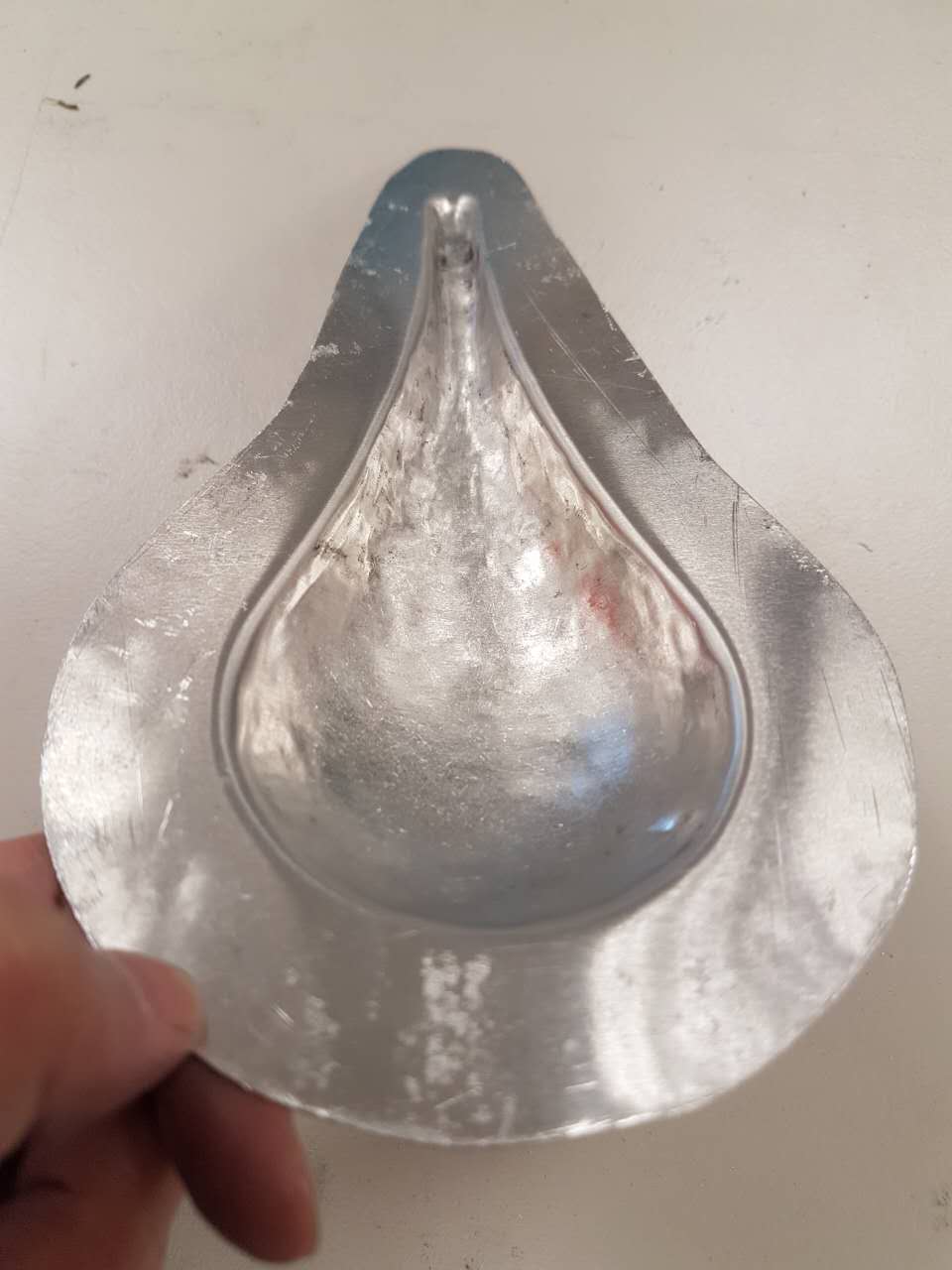

Blister
